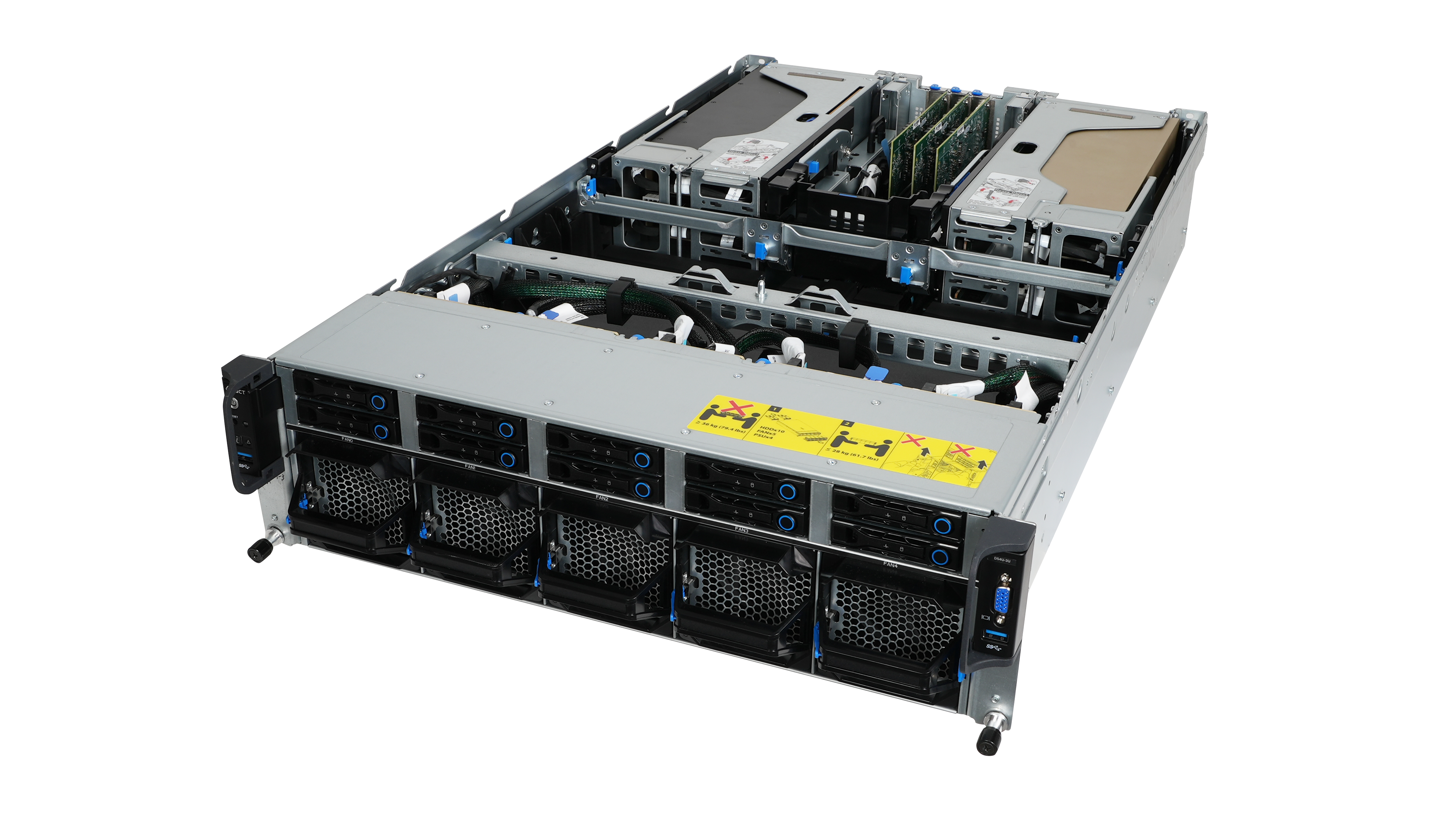

QuantaGrid D54U-3U
3U dual-socket server powered by 5th/4th Gen Intel Xeon Scalable Processors up to TDP 350W and powered by NVIDIA® GPUs
Embracing limitless Flexibility: Unveiling the Endless Possibilities of GPU Server
Dual top-bin 5th/4th Gen Intel® Xeon® Processor with 32 x DDR5 memory slots
Up to 10 x SATA/SAS/NVMe 2.5″ hot-plug SSD to speed up data-loading
Up to 4 x Dual-width or 8 x Single-width accelerators with Nvlink bridge board (optional) supported for AI training/inference workloads.
Various GPU configuration support including active type and passive type GPU
Future support up to 600W GPU
Design reserved for the liquid cooling solution
Tool-less GPU module design for easy service
KEY FEATURES
- Powered by 5th/4th Gen Intel® Xeon® Scalable Processor
- Powered by NVIDIA® GPUs
- PCle 5.0 & DDR5 platform ready
- Up to 4x DW accelerator or 8x SW accelerator
- Support active type and passive type accelerator
- Up to 10x PCIe 5.0 NVMe drive to speed up data-loading
- PCle 5.0 400Gb Networking for Scale-out
- Enhanced serviceability with tool-less, hot-plug designs
Specifications
Processor / System Bus
2 x Socket
4th Gen Intel® Xeon® Scalable processors (Up to 350W)
5th Gen Intel® Xeon® Scalable processors (Up to 350W)
Core Logic
Intel® C741 Chipset
Memory
Total Slots
32
Capacity
Up to 8TB
Memory Type
5600 MT/s DDR5 RDIMM / 3DS RDIMM
Memory Size
16GB, 32GB, 64GB, 128GB, 256GB
Expansion Slots
SKU – #1
[Dual Width GPU Config]
(4) PCIe 5.0 x16 FHFL slot
(2) PCIe 5.0 x16 HHHL slot
(1) PCIe 5.0 x16 OCP 3.0 TSFF/SFF slot
(1) PCIe 5.0 x8 HHHL slot
SKU – #2
[Single Width GPU Config]
(8) PCIe 5.0 x8 HHHL slot
(2) PCIe 5.0 x16 HHHL slot
(1) PCIe 5.0 x16 OCP 3.0 TSFF/SFF slot
(1) PCIe 5.0 x8 HHHL slot
Storage
Storage Controller
Intel® C741
14x SATA3 6Gb/s ports
Onboard Storage
(2) 2280 PCIE M.2 on board for Booting OS
Front I/O Ports
(1) Power button/LED
(1) ID button/LED
(1) Status LED
(1) Reset button
(2) USB 3.0
(1) VGA
Rear I/O Ports
(1) USB 3.0
(1) Mini display port
(1) ID LED
(1) PFR/PWR LED
(1) PFR/PWR Button
(1)COM Port (micro USB type-B)
(1)RJ45
Power Supply
2+2 High efficiency redundant hot-plug Titanium/Platinum 1600W AC PSU
