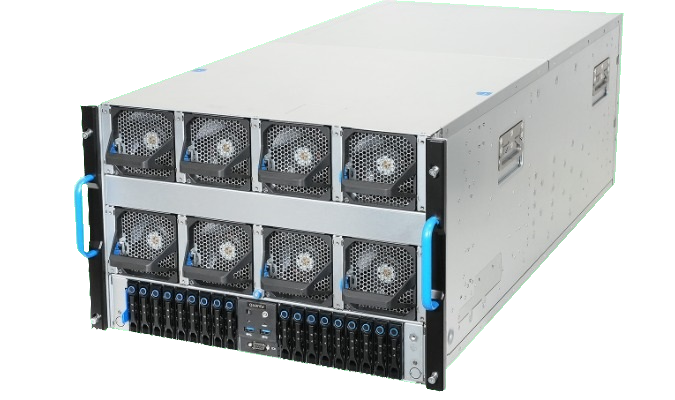

QuantaGrid
D74H-7U
Quanta Cloud Technology (QCT) is a global datacenter solution provider. Powered by the latest 4th Gen Intel® Xeon® Scalable processor family, 32 DDR5 DIMM slots, the D74H-7U features the NVIDIA® HGX H100 and supports nonblocking GPUDirect RDMA and GPUDirect Storage.
Advanced Performance for the Most Extreme AI-HPC Workloads

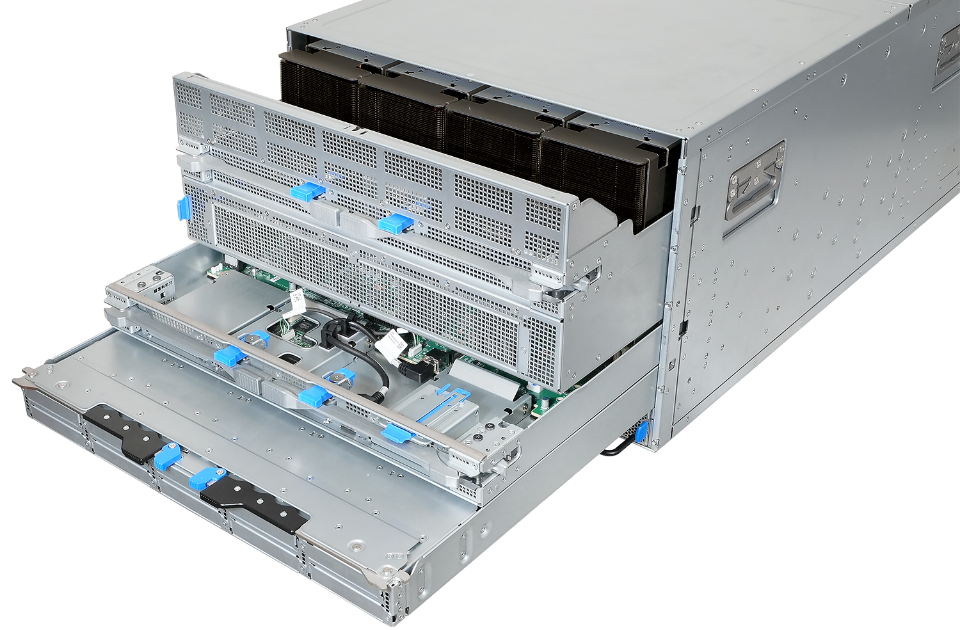

The architecture is designed around a toolless modular philosophy. Major components can be removed from the system chassis without unmounting from the rack for better serviceability and increased system uptime.
The modularityin this innovative design allows for forward support of next generation CPUs and GPUs.
This server is optimized to accelerate training for massive data sets, huge AI models such as natural language processing, large language models, and supercomputing applications.
KEY FEATURES
- 2x Top Bin 5th/4th Gen Intel® Xeon® Processor
- 18x SFF All-NVMe drive bays for GPUDirect storage and boot drive
- 10x OCP NIC 3.0 TSFF for GPUDirect RDMA
- 8x Hopper H100 SXM5 GPU modules with HGX baseboard
Specifications
Processor / System Bus
2 x Socket
4th Gen Intel® Xeon® Scalable processors (Up to 350W)
5th Gen Intel® Xeon® Scalable processors (Up to 350W)
Core Logic
Intel® C741 Chipset
Memory
Total Slots
32
Capacity
Up to 8TB
Memory Type
5600 MT/s DDR5 RDIMM / 3DS RDIMM
Memory Size
16GB, 32GB, 64GB, 128GB, 256GB
Expansion Slots
(2) PCIe 5.0 x16 OCP 3.0 SFF slots
(10) PCIe 5.0 x16 OCP 3.0 TSFF slots
Storage
(2) 2280 M.2
(18) 2.5″ hot-plug NVMe SSD drives
Front I/O Ports
(1) Power button/LED
(1) Reset button
(1) ID button/LED
(1) System status LED
(2) USB 3.0
(1) VGA port
Rear I/O Ports
(1) Power button
(1) ID button/LED
(1) USB 3.0 port
(1) Mini Display port
(1) COM Port (micro USB type-B)
(1) RJ45 dedicated mgmt port
Power Supply
3+3 high efficiency redundant hot-plug 4000W 80 Plus Titanium PSUs
